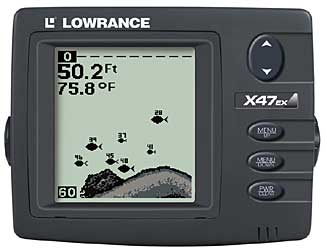

More picture, more performance features - including temp -
and more power to you in a fantastic new Lowrance LCD sonar that’s
affordable beyond belief!
View Points:
Large 4.5" diagonal (11 .4 cm), high-contrast, 168
vertical pixel, Film SuperTwist LCD with 4-level gray scale delivers
excellent target detail and separation, even in direct sunlight
Backlit screen for easy readability at night and in
low-light conditions
Simplified keypad with Menu keys for easy on-screen
features selection
Advanced new receiver design offers enhanced sensitivity
and target detail, as well as greater resistance to electrical interference
Compact case design for easy in-dash or bracket mounting
Transducer with Temp:
Standard X47EX unit features patented high-speed,
transom-mount, 200 kHz Skimmer® transducer - with built-in water surface
temp sensor - that produces a wider, more effective fish identification area
of up to 60 degrees when using high sensitivity settings. Operates at boat
speeds up to 70 mph (61 kts)
Optional shoot-thru hull, trolling motor and portable
transducer choices also available for purchase
Performance Features:
True 800 watts peak-to-peak transmit power
for depths to 600 feet* (183 m)
Hands-free operation ease with Advanced Signal Processing
(ASP™) that automatically adjusts all crucial sonar settings for the best
possible picture in nearly all fishing situations
Patented GRAYLINE® separates fish and important structure,
on or near the bottom, from the actual bottom, and defines bottom
composition/hardness
Selective on/off Advanced Fish I.D.™ feature shows
underwater targets in different sizes of fish symbols based on the relative
signal strengths of the return echoes
Selective on/off FishTrack™ feature displays target depth
readings above each fish symbol as a guide for quick and precise lure
presentations
Zoom with zoom-bottom-tracking and easy zoom-in/out
control
Selective on/off Shallow, Deep, and Fish alarms
Built-in back-up memory for key sonar features
Easy to connect/disconnect uniplug cable
Completely sealed and waterproof for use even in harsh
saltwater environments
Full one-year warranty
Dimensions:
LCD Viewing Area - Diagonal: 4.5"/11.4 cm
Case Size - Height: 5.4"/13.8 cm Width: 6.9"/17.6 cm Depth: 3.4"/8.6 cm
