View Points:

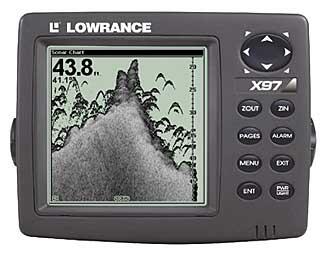

Exceptional 5" diagonal (12.7 cm), 320 x 320 pixel, high-contrast Film
SuperTwist LCD display
16-level gray scale definition and 102,400 total pixel resolution for
remarkable target detail and separation, even in direct sunlight
Brilliant fluorescent cold cathode backlit screen and keypad for easy
readability at night and in low-light conditions
Simplified keypad with Menu and Pages keys for easy on-screen features
selection
Advanced receiver design offers enhanced-sensitivity and target detail,
as well as greater resistance to electrical interference
Continuous digital depth and depth scale readouts; user-selectable upper
and lower depth range limits
Transducer with Temp:
Standard X97 unit features high-performance, low-profile, transom-mount,
200 kHz Skimmer® transducer - with built-in water surface temp sensor - that
produces a wider, more effective fish identification area of up to 60
degrees when using high sensitivity settings. Operates at boat speeds up to
70 mph (61 kts)
X97 also available as head unit only with thru-hull, shoot-thru-hull,
trolling motor, portable, and deep water transducer options for purchase
Performance Features:
True 3,000 watts peak-to-peak transmit power for depths to 1,000 feet*
(305 m)
FasTrack™ full-screen flasher mode with GRAYLINE® displays
instantaneous sonar returns, plus gives the relative signal strength of each
target
When displaying actual sonar returns, FishReveal™ feature shows fish
targets hidden by surface clutter, thermoclines, weed beds and other cover
in 16 levels of gray scale
HyperScroll™ feature locates and displays fish targets at higher boat
speeds
Patented GRAYLINE® separates fish and important structure, on or near the
bottom, from the actual bottom, and defines bottom composition/hardness
Hands-free operation ease with Advanced Signal Processing (ASP™) that
automatically adjusts all crucial sonar settings for the best possible
picture in nearly all fishing situations
Selective on/off Advanced Fish I.D.™ feature shows underwater targets in
different sizes of fish symbols based on the relative signal strengths of
the return echoes
Selective on/off FishTrack™ feature displays target depth readings above
each fish symbol as a guide for quick and precise lure presentations
Programmable display feature lets you combine a panel of your favorite
sonar data readings with your sonar graph in one easy-to-read display
Multi-range split-screen zoom and automatic bottom tracking with
high-speed display updates during depth range changes for uninterrupted
viewing
Instant zoom display ranges and zoom-bottom-tracking with easy
zoom-in/out control
Selective on/off Shallow, Deep, Zone, and Fish alarms
Built-in back-up memory preserves sonar settings for years
Trolling speed and distance log-capable with purchase of optional sensor
Livewell and baitwell temp displays with purchase of optional sensors
High-impact cover protects screen and keypad when not in use
Completely sealed and waterproof for use even in harsh saltwater
environments
Full one-year warranty
